Soft Segmented Arch

Soft Segmented Arch

$0.00
Made In The USA icon

Need help with your order?

Watch video or call 877.303.ACME (2263)

A SOFTER WAY TO FRAME AN OPENING

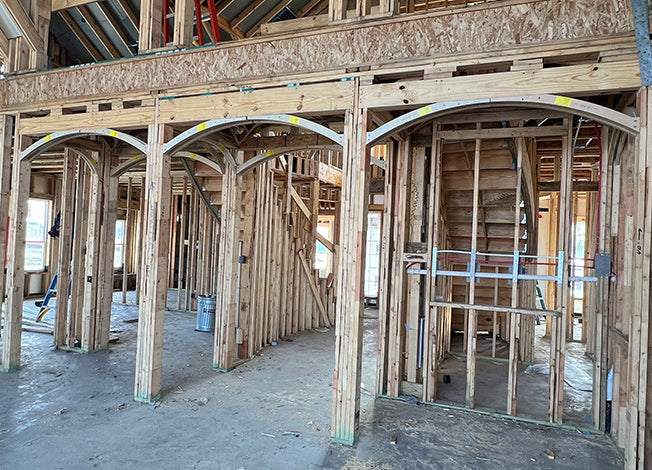

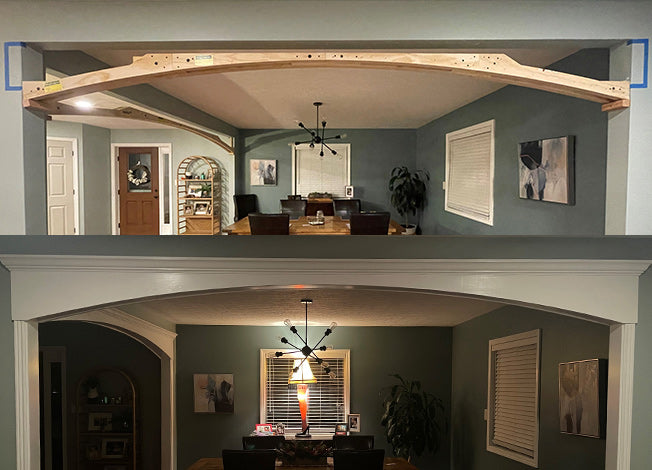

A soft segmented arch, also called an eyebrow arch, adds a gentle curve to an otherwise square opening. Its simple shape softens the transition between rooms without the pronounced height of a half-circle arch.

There are two common ways to choose your rise. One is to use a fixed rise, such as 6", 8", or 12", across every opening regardless of width. Wider openings will have a flatter-looking curve, while narrower openings will have a more pronounced arch.

The more popular approach is to set the rise at 12% to 16% of each opening’s width. This keeps the proportions similar as the openings get wider or narrower. For example, a 15% rise gives a 60" opening a 9" rise.

MADE TO YOUR MEASUREMENTS

Archways & Ceilings builds your arch framing kit to your measurements, ready to install, cover, and finish as part of your walls.

For several arches, plan the strike points, where the curves meet the sides of the openings. You can align those points at the same height, but with proportional rises, the header heights need to account for the different opening widths.

When opening widths are close, you can blend the approaches by adjusting the rises slightly for a coordinated look. Consider nearby arches together, then enter the width, depth, and rise for each opening to price your kit.

California residents: See Prop 65 warnings.

Lead Times
Lead Times

Most soft segmented arches ship within 5 to 9 business days (in most cases sooner).

Order Updates
Order Updates

The next business day following your order, we’ll email you a projected ship date.

When It Ships
When It Ships

Once your order ships, we’ll email (or text) you tracking information.

Easy to Install
Easy to Install

Your soft arch kit will come with simple instructions along with a Video QR Code.

HOW TO MEASURE A SOFT SEGMENTED ARCH

  1. Measure the depth of your opening to the nearest 1/8”.
  2. Measure the width of your opening to the nearest 1/8”.
  3. Choose your rise (reference “Choosing Your Rise” below for more information).
  4. Enter the location (place) where the soft arch will be installed in your project (for example: Entry / Dining Rm, Living / Bdrm Hall, Arch #1).

CHOOSING YOUR RISE

Percentage Ratio

Based on the width, make your rise 1 ½” to 2” per foot (12.5% – 16.5%). For example, if you have a 38 1/2” opening, you’d have a 6 3/8” rise (38.5 x .165 = 6.375(rounded)).

Constant Rise Method

Regardless of the width, assign a fixed rise to all openings. For example, set a 3ft and a 10ft opening, both with a 10” rise.

Rise Chart

A tool used to reference the width of an opening to acquire a rise.

HOW TO INSTALL SOFT ARCHWAYS

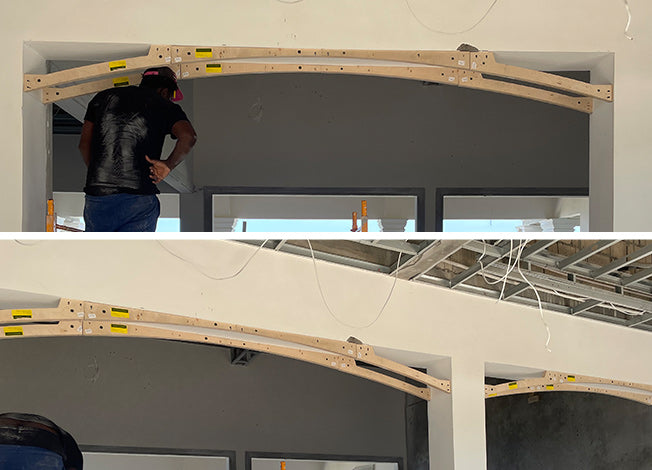

Every soft arch kit comes with tailored installation instructions to your specifications. It really is as simple as measuring and marking the center of your header, marking down from the header your total height, and then aligning and fastening each soft arch half to the stud and header.

FAQ

How long does it take to get my soft segmented archways?

Soft arch kits normally take 5 - 9 business days to manufacture (in most cases sooner). Then add a few days for shipping. Plan for 1 1/2 to 2 1/2 weeks from date of order.

How do you ship my soft segmented arches?

Depending upon the size of your order, most soft segmented arch kits ship in boxes via UPS Ground. If you order several arch kits or if you also order a ceiling or wall design kit, it could ship on a pallet via UPS Freight. If you’d like to know how it will ship before placing your order, simply call us and we’ll let you know.

How do you drywall a soft segmented arch?

Drywalling a soft arch is comprised of measuring the curvature of the arch, cutting the drywall to the curvature and depth, forming and fastening in place. You can also watch our "How to Drywall an Archway" YouTube video.

QUICK TIPS

  • Wetting the back of the drywall (as shown in the video) will make the drywall easier to bend.
  • For tighter radius soft arches, consider using a double layer of either ¼” or ¼” flex drywall.

How do you finish soft segmented archways?

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your soft segmented archway to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
