CYC WALL SPECIFICATIONS

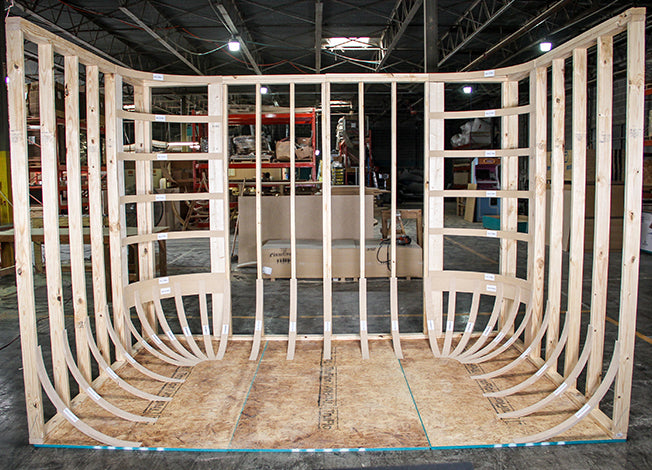

Cyclorama infinity walls are a must have when you need that certain look in video. The only problem is that they are extremely time consuming to build from scratch. Instead, consider using one of our prefabricated cyclorama wall kits. There is still some installation, but it can be completed in mere hours instead of days – and the job will save you a ton of cash.

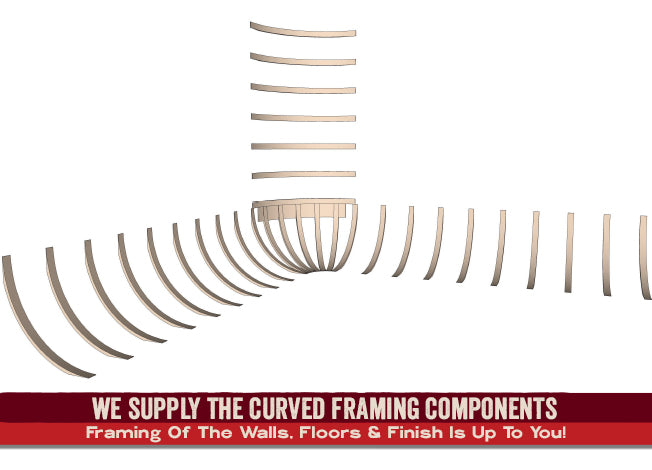

Please note that we only supply the curved framing components for your cyc wall. The walls and flooring are not included. Patent Pending.


Material

Plyworx (Plywood)
or
Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant)

Thickness (in.) Plyworx (Plywood)
The thickness of the cyc wall pieces are 2 ½” thick at the widest point

Medium Density Fiberboard (MDF)
The thickness of the cyc wall pieces can range from ½” to 1” thick depending upon the radius.
Depth (in.) Plyworx (Plywood)
The depth of the cove pieces are normally 36mm (1 27/64") deep.

Medium Density Fiberboard (MDF)
The depth of the cove pieces are normally 2 ½” deep up to 12”.
Spacing We provide enough cyc wall radius pieces to be spaced 16” O.C.

California residents see Prop 65 WARNINGS

Lead Times
Lead Times

Most cyc walls ship within 10 to 14 business days (in most cases sooner).

Order Updates
Order Updates

The next business day following your order, we’ll email you a projected ship date.

When It Ships
When It Ships

Once your order ships, we’ll email (or text) you tracking information.

Easy to Install
Easy to Install

Your cyc wall will come with simple instructions making installation a breeze.

HOW TO MEASURE A CYCLORAMA KIT

Measuring your cyclorama infinity wall consists of providing measurements for the perimeter, radius, and ceiling height. You’ll also need to provide the number of your inside corners and choose a type. For clarification regarding the above measurements, please use the above pricing calculator and click on the “?” tool tips next to each measurement for more information.

CHOOSING A CYC WALL RADIUS

Choosing a radius for your Cyc Wall depends upon your intended use. In our opinion, we wouldn’t recommend going smaller than 18” or larger than 30”. If you want a specific radius that we don’t provide here, call us to discuss and we’ll prepare a quote for you.

HOW TO INSTALL A CYC WALL KIT

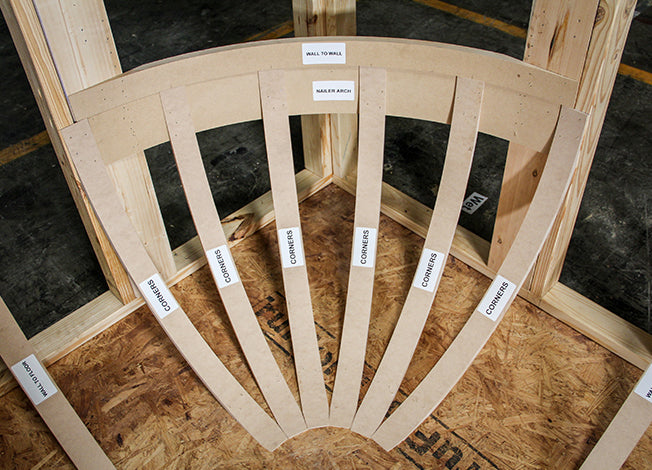

Installing a cyc wall begins with framing your walls. Once completed, you’ll start in the corners. Fasten the corners as specified in your instructions and then start on either side of the corner and space the radius cyc wall pieces no more than 16” O.C. We recommend using either a T-Nailer or a narrow crown stapler when fastening the cyc wall pieces.

FAQ

How long does it take to get my cyc wall?

Cyc walls normally take 10 - 14 business days to manufacture (in most cases sooner). Then add a few days for shipping. Plan for 2 1/2 to a little over 3 weeks from date of order.

How do you ship my cyc wall?

Depending upon the size of your cyc wal and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

How do you drywall a cyc wall?

Drywalling a cyc wall is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place. While we currently don't have a cyc wall drywall video, watch our how to drywall a cove ceiling video, which is essentially the same thing but on a ceiling instead of the floor.

QUICK TIPS

  • Wetting the back of the drywall will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.
