CLOISTER VAULT SPECIFICATIONS

Cloister vaults, also known as dome vaults, are a close cousin to the groin vault. Where the groin vault arches towards the center from the corners of the walls, the cloister vault arches toward the center from a constant spring point along the wall. This slight difference makes a huge impact on the overall design. Plus, if you’re looking to add height to a room on an exterior wall, the cloister vault can arch up into your attic, curving underneath your roof rafters.

Material

Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant) & Plywood

Thickness (in.) 1 ½” thick struts
Depth (in.)

3 ½” deep struts

California residents see Prop 65 WARNINGS
Lead Times
Lead Times

Most cloister vaults ship within 10 to 14 business days (in most cases sooner).

Order Updates
Order Updates

The next business day following your order, we’ll email you a projected ship date.

When It Ships
When It Ships

Once your order ships, we’ll email (or text) you tracking information.

Easy to Install
Easy to Install

Your cloister vault will come with simple instructions making installation a breeze.

HOW TO MEASURE A CLOISTER VAULT CEILING

  1. Measure the long side of your cloister vault to the nearest 1/8”.
  2. Measure the short side of your dome vault to the nearest 1/8”.
  3. Choose a rise for your dome vault kit to the nearest 1/8”.
  4. Enter the location (place) where the dome vault will be installed in your project (for example: Dining Rm, Gallery Hall, Entry, #1 Dome Vault).

CHOOSING A CLOISTER VAULT RISE

Choosing a rise for your dome vault is mostly personal taste along with the overall design/theme of the home. As long as you keep in mind that the highest point of a cloister vault is at the center and that it is from here that it drops down along your wall in a straight line, then you’ll be fine. If you have any concerns about placement of your cloister vault, feel free to call us and we’d be happy to walk you through the process.

HOW TO INSTALL A CLOISTER VAULT

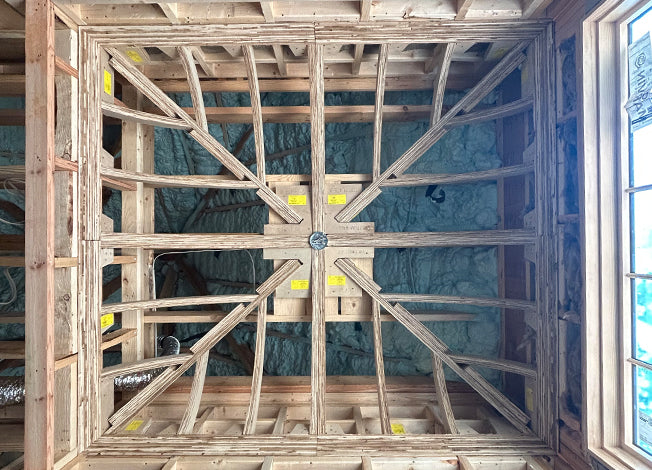

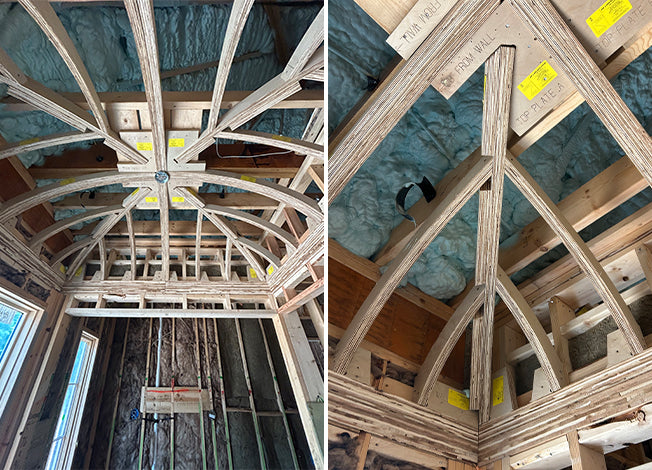

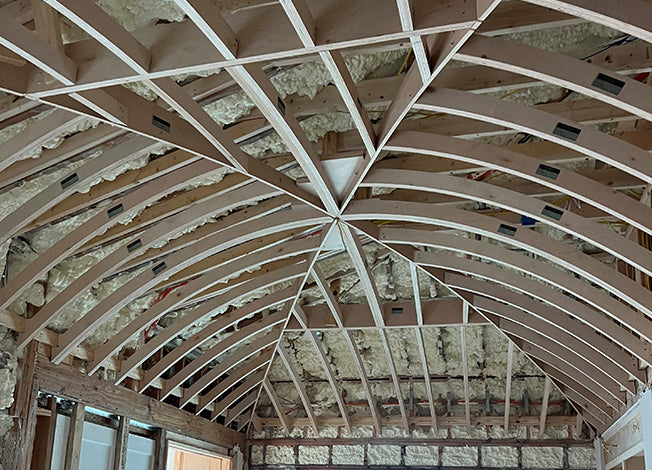

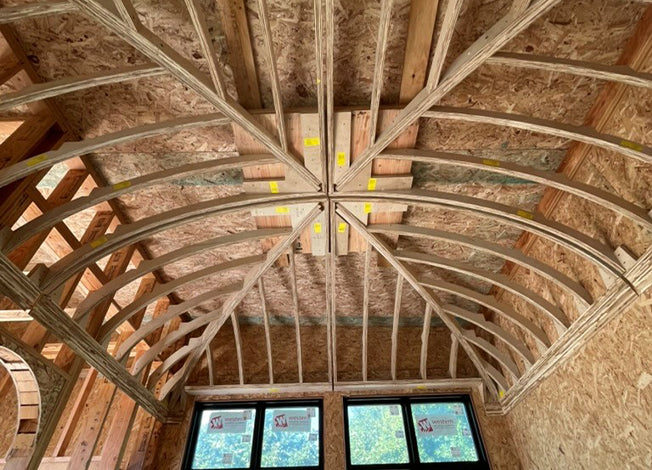

Every cloister vault kit comes with tailored installation instructions to your specifications. Installing a dome vault is comprised of setting the centering support beams to the total height, fastening the cloister hips into place and then attaching each strut to the wall and to the cloister hip as specified by the installation instructions. If you can color by number and operate a nail gun, then you can install one of our cloister vault ceilings.

FAQ

How long does it take to get my cloister vault?

Cloister vault kits normally take 10 - 14 business days to manufacture (in most cases sooner). Then add a few days for shipping. Plan for 2 1/2 to a little over 3 weeks from date of order.

How do you ship my cloister vault?

Depending upon the size of your cloister vault and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

How do you drywall a cloister vault?

Drywalling a cloister vault is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place. While we currently don't have a cloister vault drywall video, you can visit our YouTube page and watch some of our other drywall videos. While the application is different, the concepts are the same.

QUICK TIPS

  • Wetting the back of the drywall will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.

How do you finish cloister vaults?

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your cloister vault to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
