Groin Vaults

$0.00
Notify me when back in stock

Need help with your order?

Watch video or call 877.303.ACME (2263)

GROIN VAULT SPECIFICATIONS

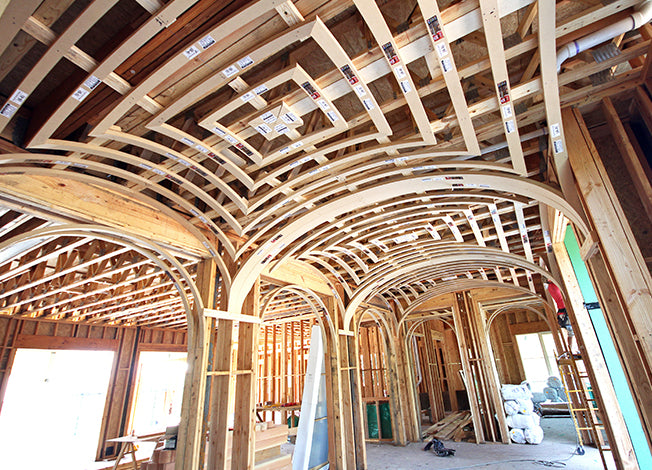

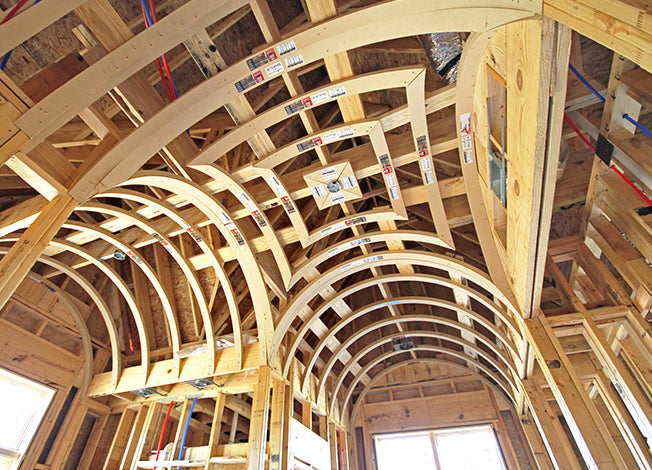

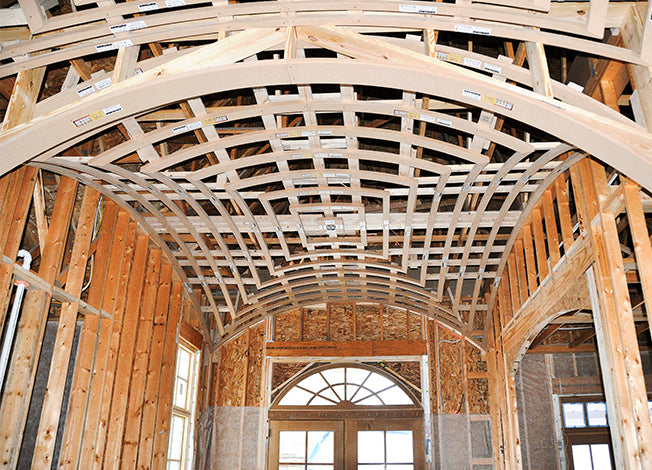

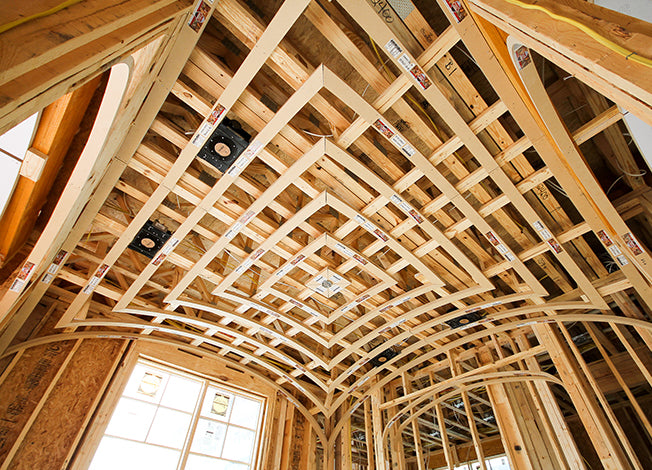

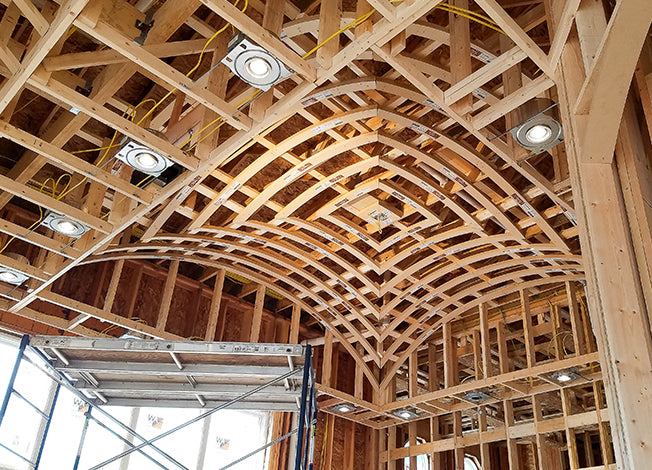

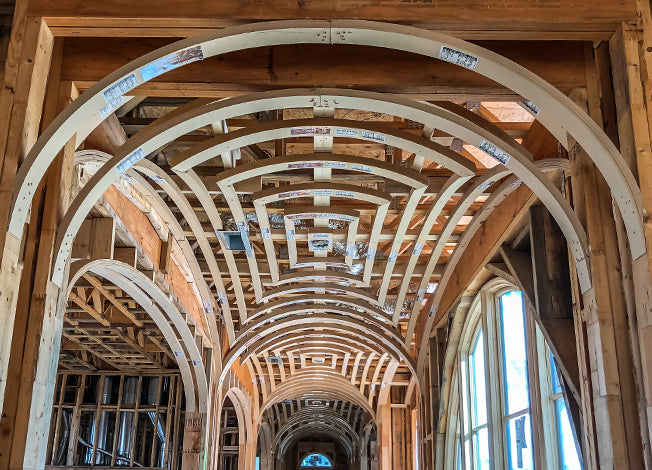

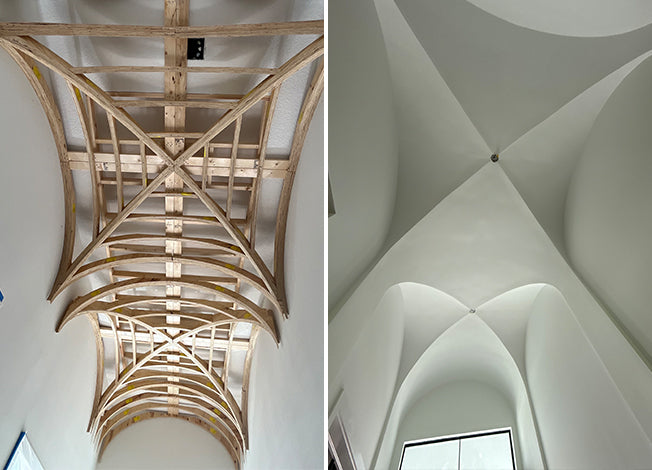

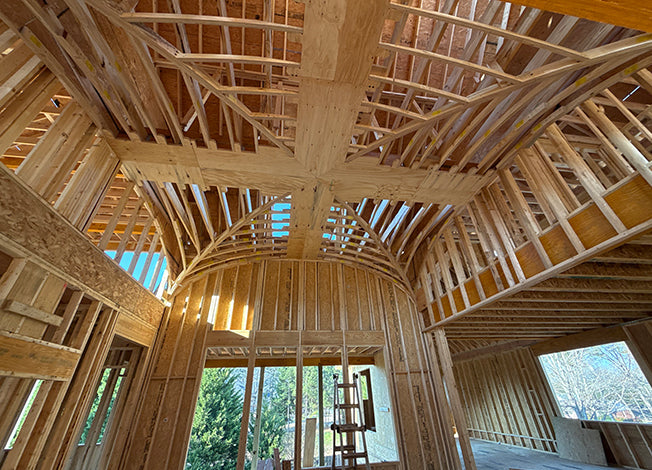

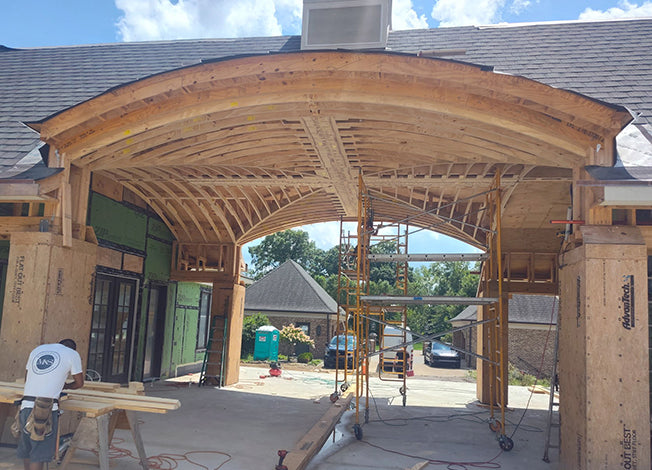

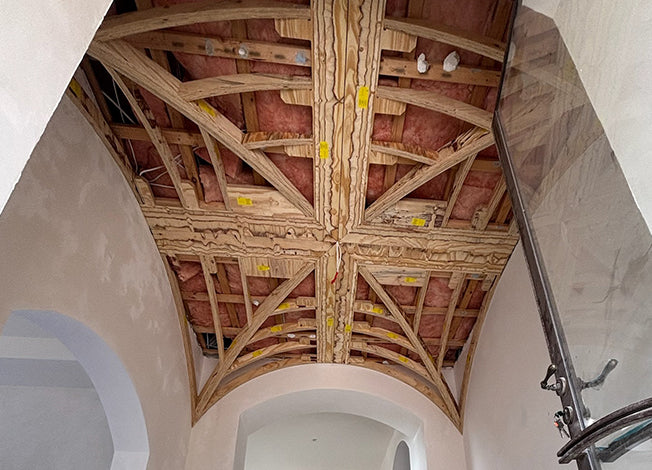

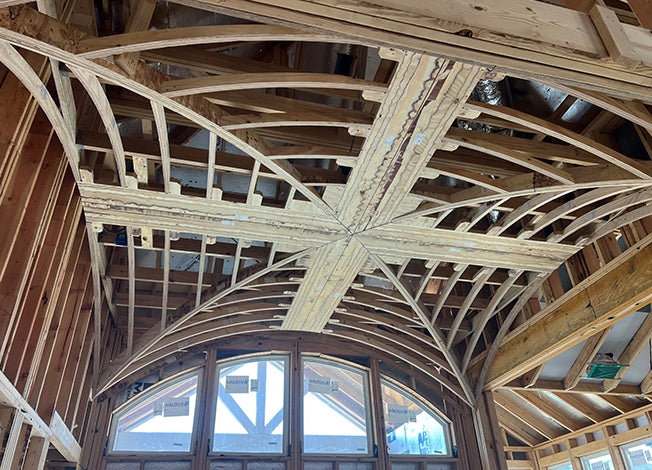

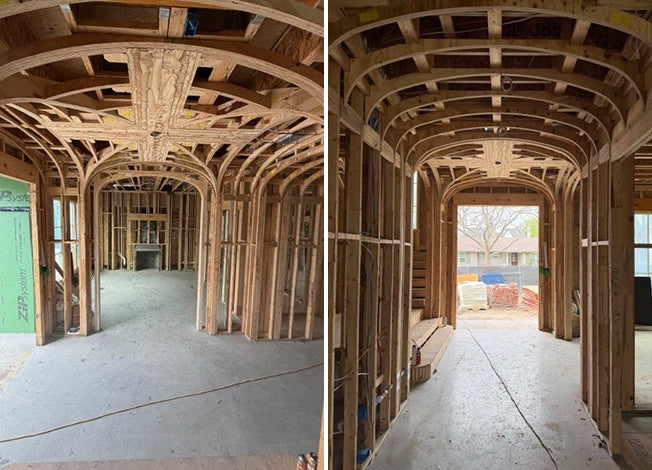

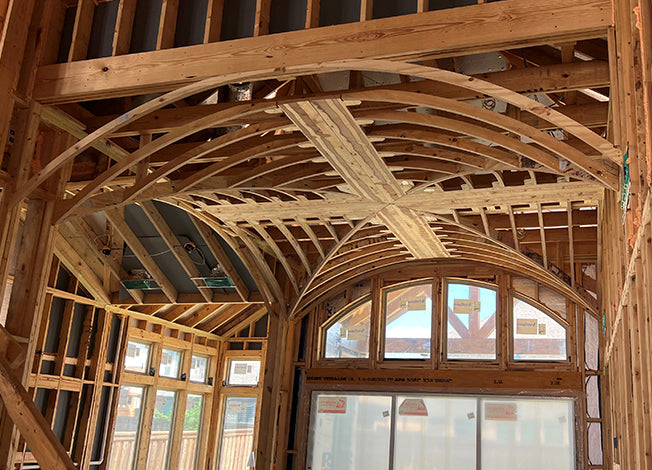

A groin vault is formed by two barrel vaults intersecting at right angles. The result is four curving surfaces that draw the eye up and toward the center. The areas where the barrel vaults come together create ribs that add both strength and visual appeal.

Material

Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant)

Thickness (in.)

1 1/2″ thick

Depth (in.) 2” – 7” deep struts
California residents see Prop 65 WARNINGS

HOW TO MEASURE A GROIN VAULT CEILING

  1. Measure the long side of your groin vault to the nearest 1/8”.
  2. Measure the short side of your groin ceiling to the nearest 1/8”.
  3. Choose a rise for your groin ceiling kit to the nearest 1/8”.
  4. Enter the location (place) where the groin ceiling will be installed in your project (for example: Dining Rm, Gallery Hall, Entry, #1 Groin Ceiling).

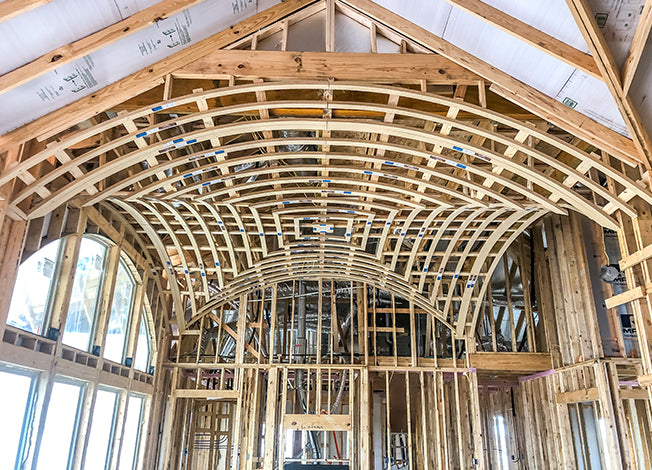

HOW TO INSTALL A GROIN CEILING

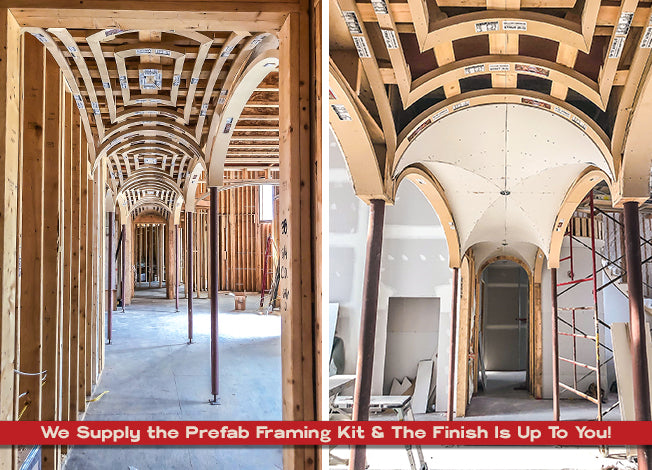

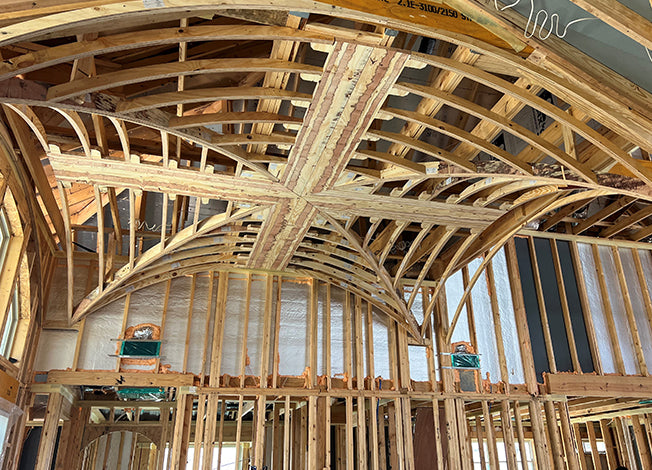

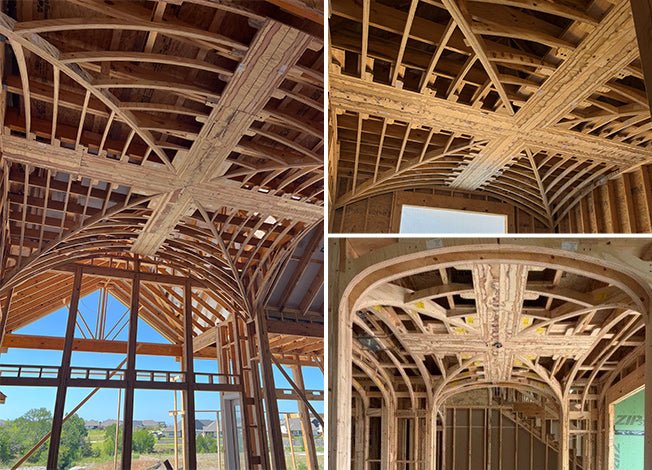

Every groin ceiling kit comes with tailored installation instructions to your specifications. It's as simple as measuring and marking the placement of each strut, nailing each strut in its place, and then adding back bracing with an occasional cripple. If you can color by number and operate a nail gun, then you can install one of our groin vaults.

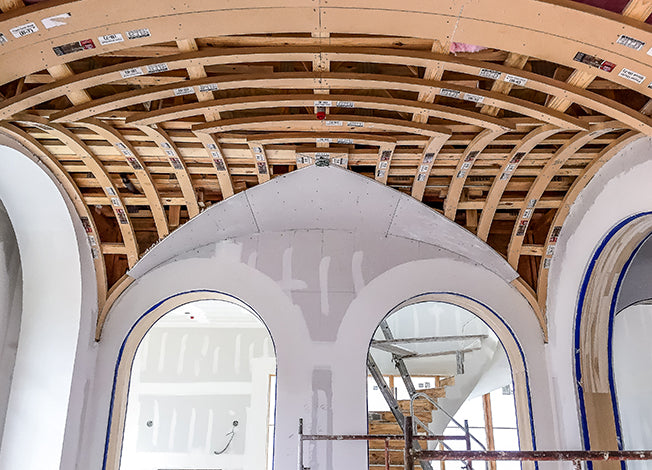

HOW TO DRYWALL A GROIN CEILING

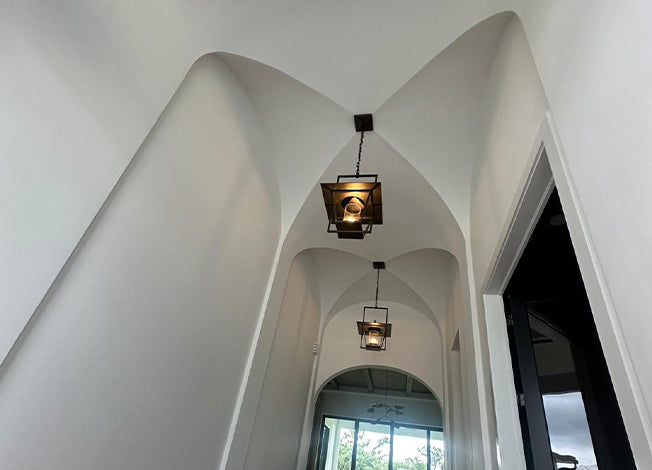

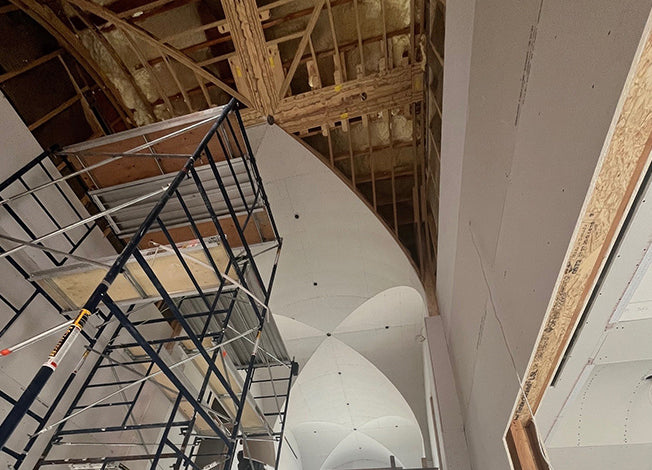

Drywalling a groin vault is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place.

QUICK TIPS

  • Wetting the back of the drywall (as shown in the video) will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.

FAQ

How long does it take to get my groin vault ceiling?

Depending upon the size and style of your groin vault, it could take us as little as 3 business days to manufacture or as long as 10 business days. Then add a few days for shipping.

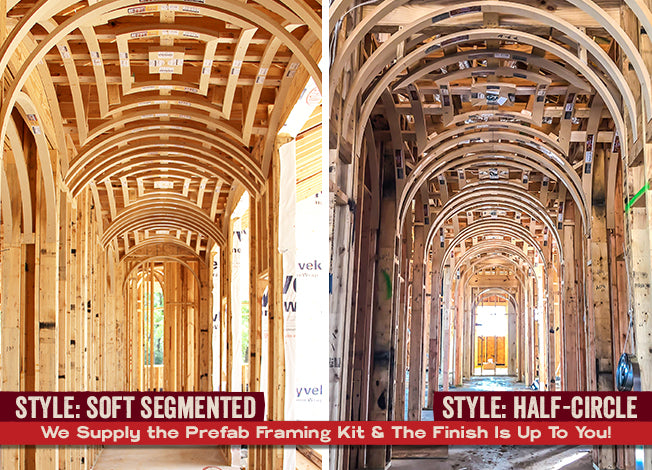

  • Soft & Half-Circle Style: 3 to 5 Business Days
  • Elliptical & Dual Radius Style: 5 to 10 Business Days

How do you ship my groin vault?

Depending upon the size of your groin vault and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Normally groin vaults less than 8 feet will ship UPS Ground, and anything larger will ship UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

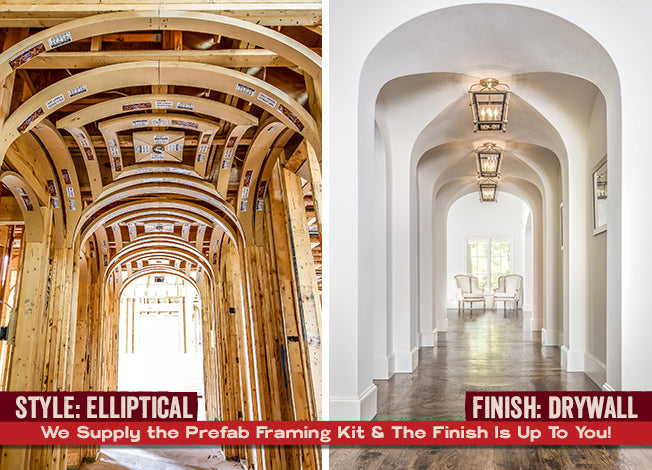

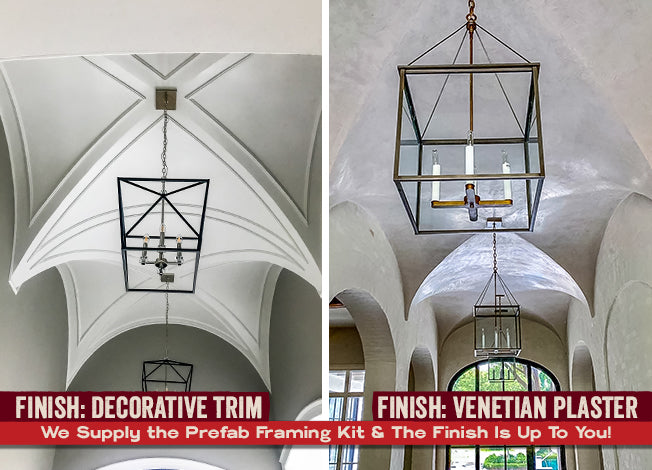

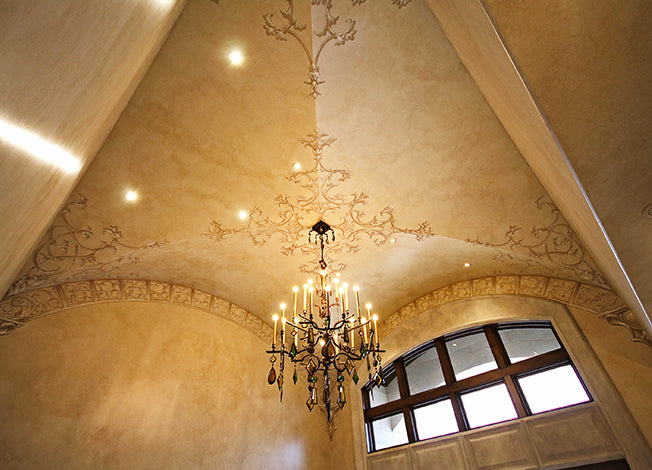

How do you finish groin vaults?

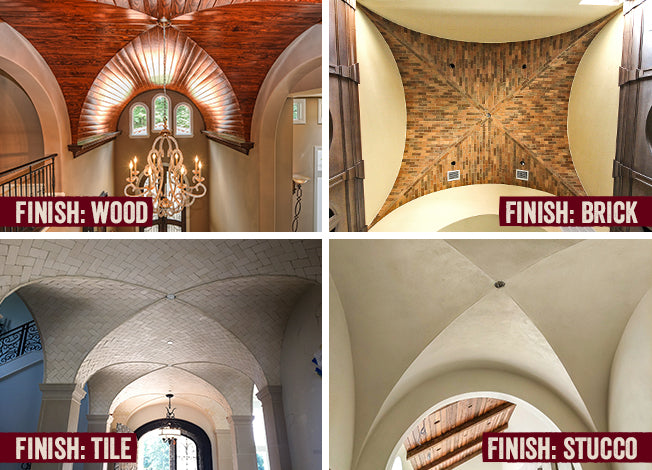

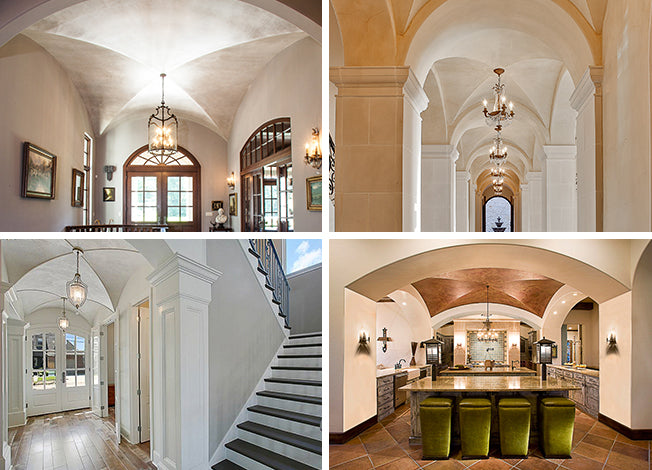

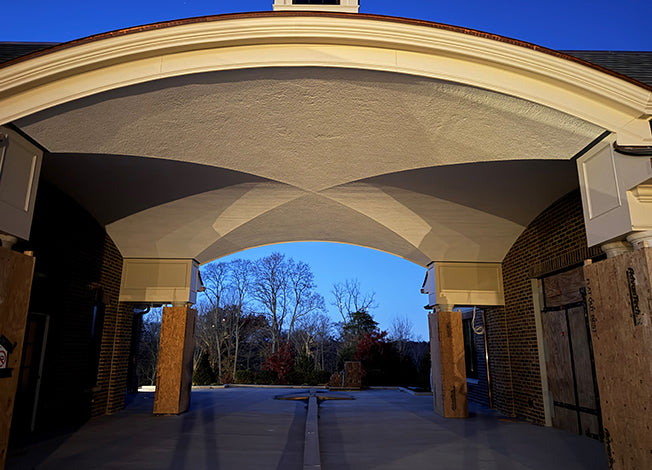

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your groin vault to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
