Astroid curve ceilings, or ceiling etching, are a modern transitional approach to ceiling design. They can easily be built to fit in a tray ceiling or surface mounted to any flat ceiling. Plus, our astroid curved kits are a breeze to install. We combine CNC plywood alignment guides with our patented preformed arches to provide a one-of-a-kind ceiling. Choose from our three different astroid ceiling styles: Alpha, Athena, and Omega, or design your own style.


Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant)
CNC Plywood Arch Guides

California residents see Prop 65 WARNINGS
Lead Times
Lead Times

Most astroid curve ceilings ship within 10 to 14 business days (in most cases sooner).

Order Updates
Order Updates

The next business day following your order, we’ll email you a projected ship date.

When It Ships
When It Ships

Once your order ships, we’ll email (or text) you tracking information.

Easy to Install
Easy to Install

Your astroid curve ceiling will come with simple instructions making installation a breeze.


Measuring a ceiling for an astroid curve is pretty straight forward. It simply consists of measuring the width, length, choosing your style, naming it with a location, and determine your height.

  1. Measure the width, or the shorter side, of your framed rectangle or room to the nearest 1/8”.
  2. Measure the length, or the longer side, of your framed rectangle or room to the nearest 1/8”.

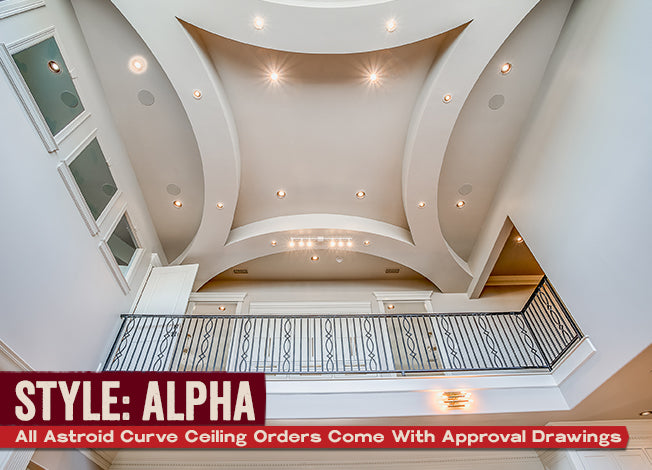

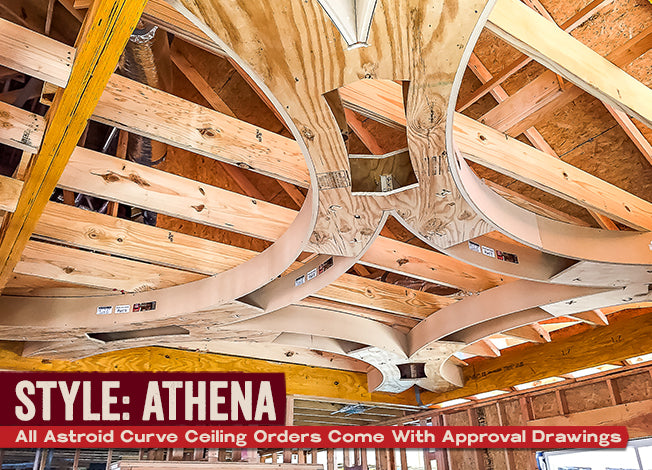

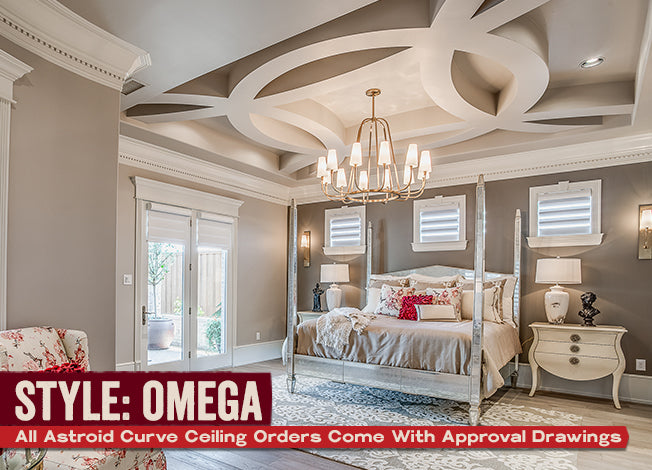

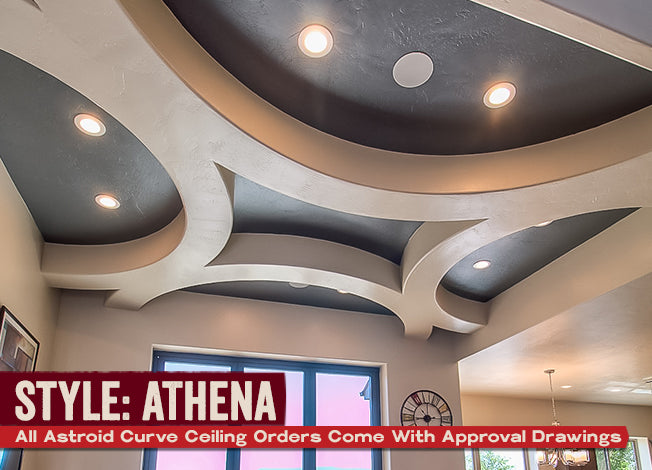

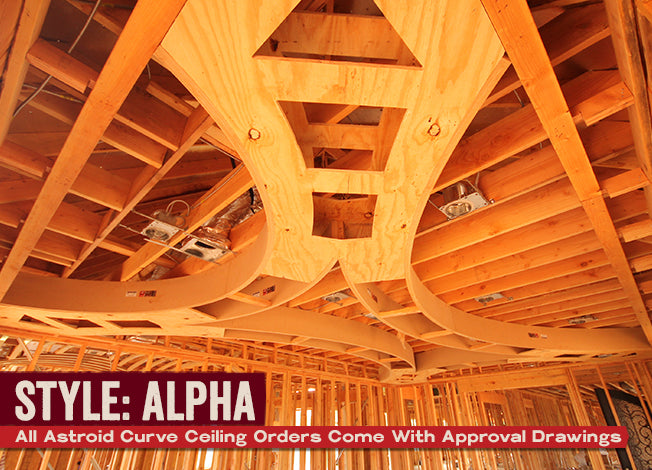

  3. Choose the style of your astroid curve: Alpha, Athena or Omega.
  4. Enter the location (place) where the astroid curve will be installed in your project (for example: Entry, Study, Master Suite, #1 Astroid curve).
  5. Determine your height to the nearest 1/8”.


Choosing a height for your astroid curve is mostly personal taste along with the overall design/theme of the home. The greater the height, the bolder the statement. The less the height, the more subtle, yet elegant, statement you’ll make. If you plan to install an astroid curve in a tray ceiling, usually the depth of the tray will be your height. However, this doesn’t have to be the case as you could always do less to slightly accent the design. A good rule of thumb is the greater the ceiling height, the greater you should make your height.

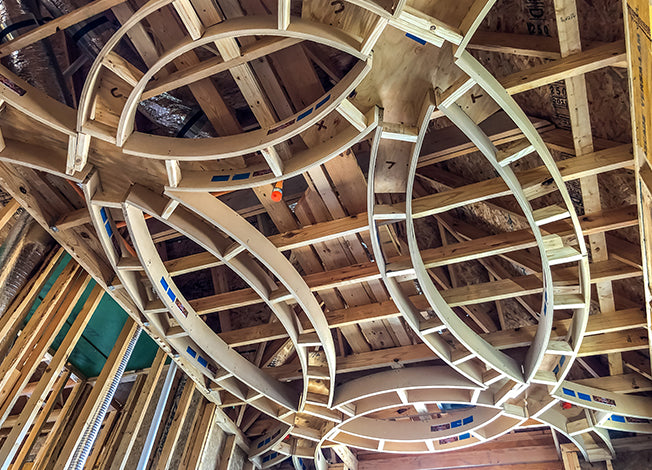

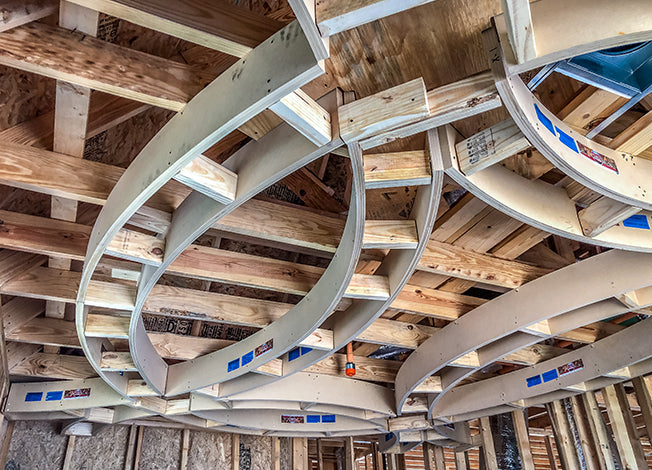

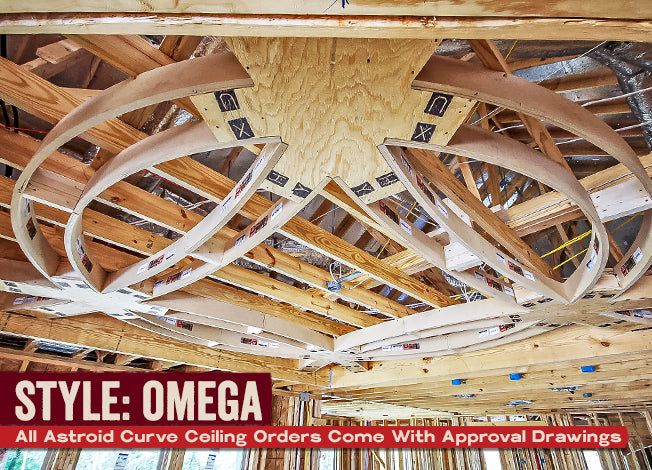

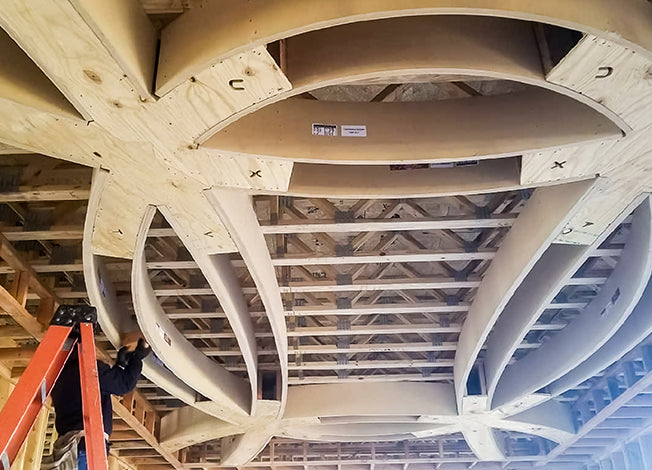

Installing an astroid curve ceiling simply consists of fastening the CNC plywood alignment guides into place as specified on your custom plan, and then fastening the preformed arches to the ceiling and the forms as shown in the instructions. Watch how the Omega astroid curve ceiling is installed in a tray ceiling with one side having a 45° clipped corner.


How long does it take to get my astroid curve ceiling?

Astroid curve ceiling kits normally take 10 - 14 business days to manufacture (in most cases sooner). Then add a few days for shipping. Plan for 2 1/2 to a little over 3 weeks from date of order.

How do you ship my astroid curve ceiling?

Depending upon the size of your astroid curve ceiling and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

How do you drywall an astroid curve ceiling?

Drywalling a astroid curve ceiling is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place. While we currently don't have a astroid curve ceiling drywall video, you can visit our YouTube page and watch some of our other drywall videos. While the application is different, the concepts are the same.


  • Wetting the back of the drywall will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.

How do you finish astroid curve ceilings?

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your astroid curve ceiling to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
