Barrel Vaults

$0.00
Notify me when back in stock

Need help with your order?

Watch video or call 877.303.ACME (2263)

BARREL VAULT SPECIFICATIONS

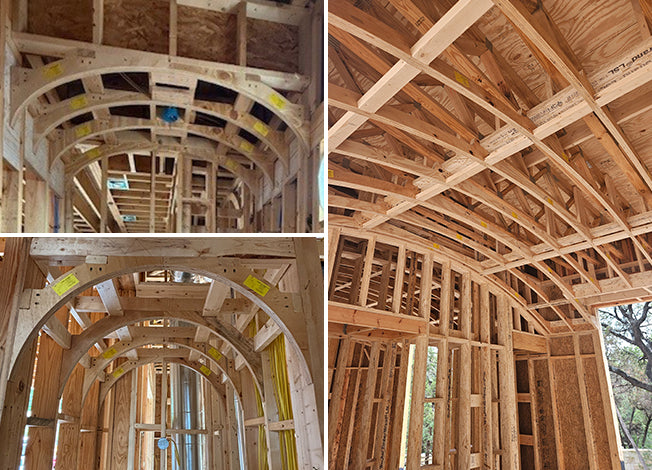

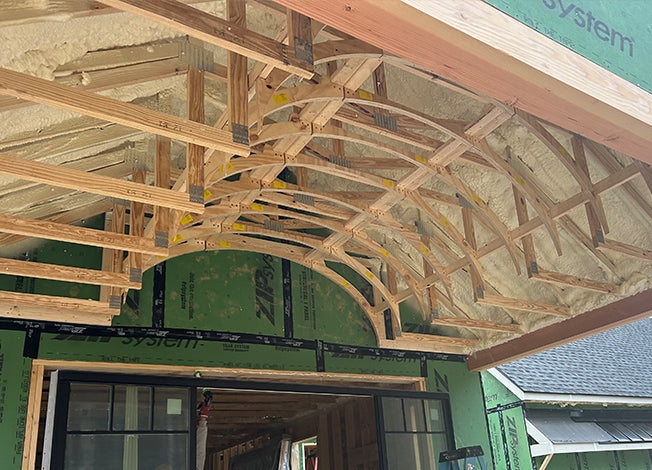

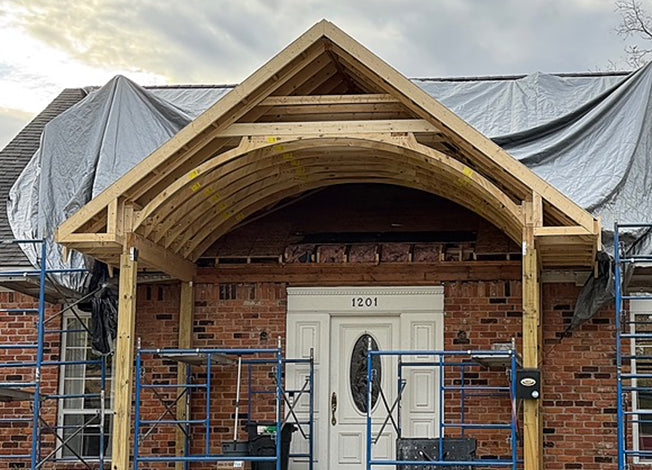

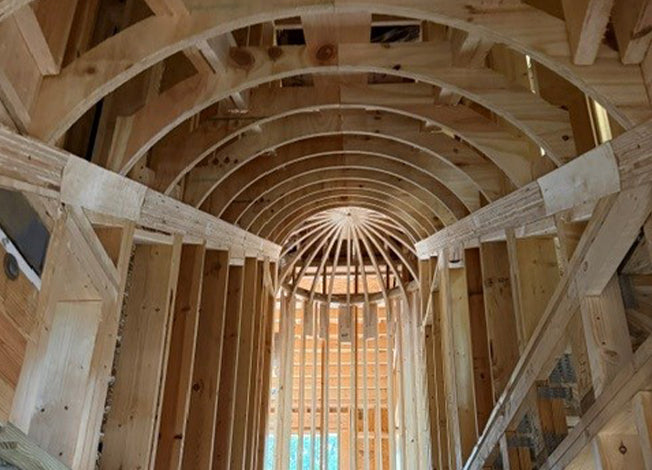

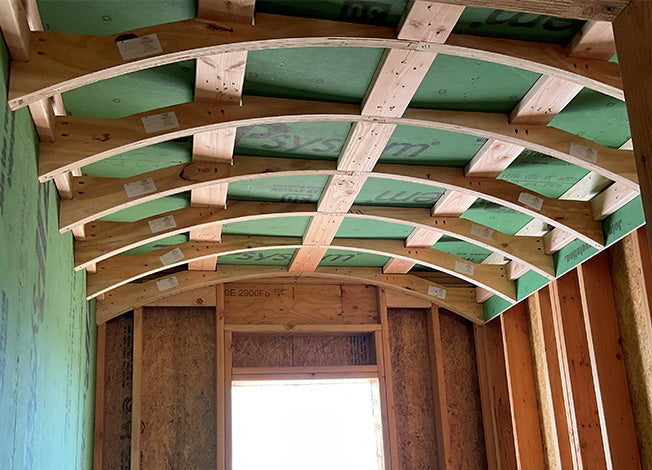

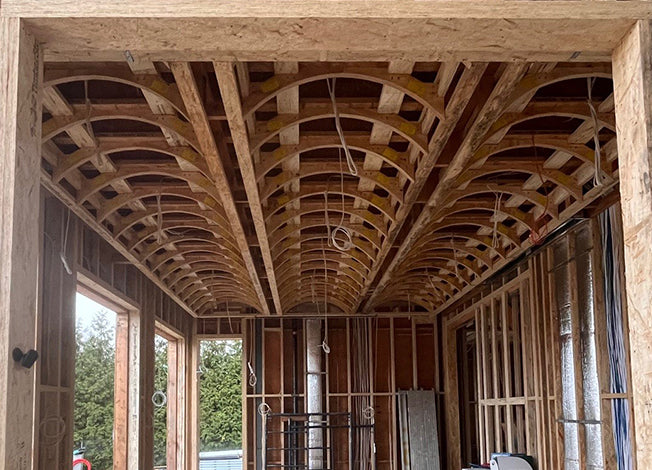

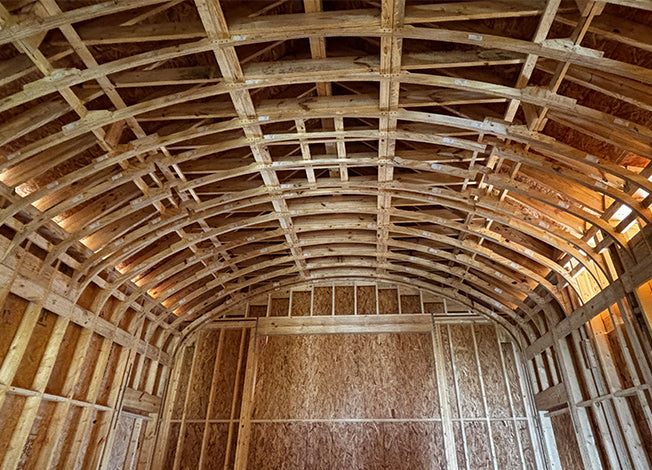

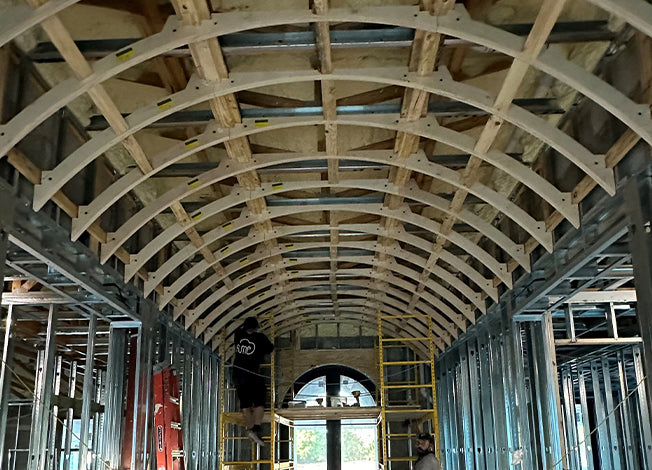

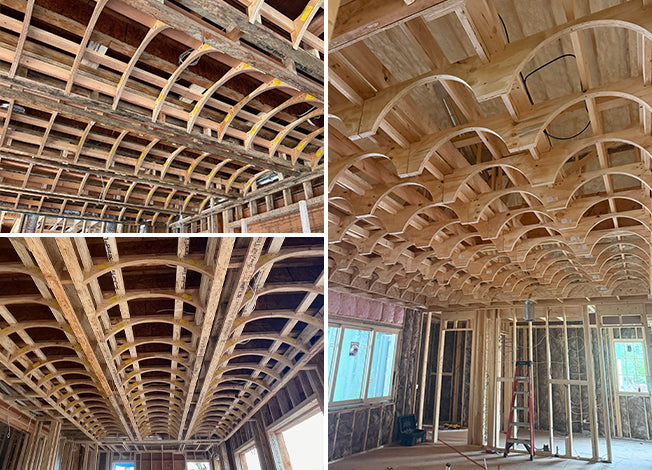

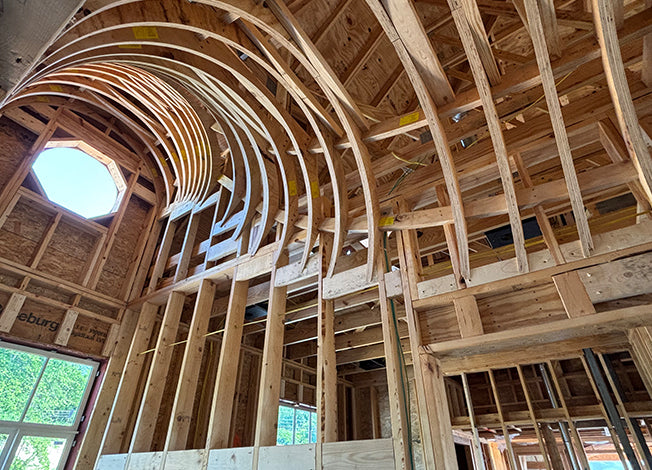

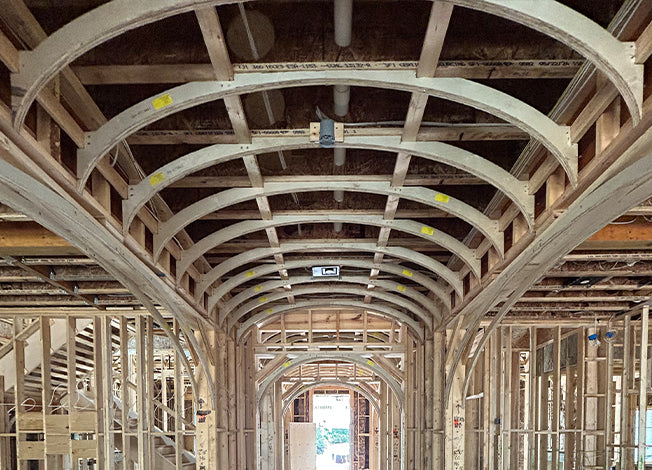

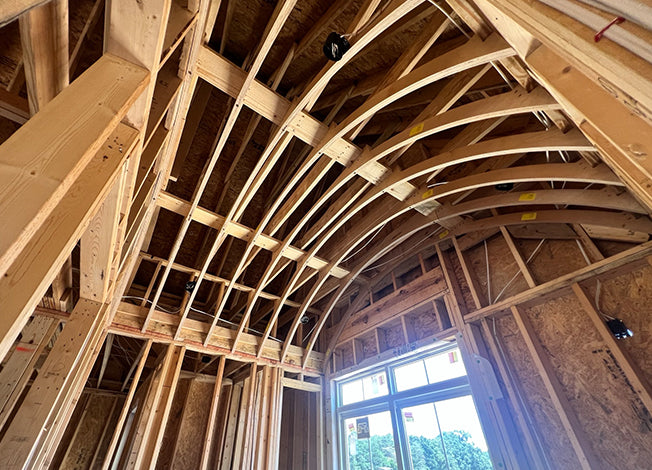

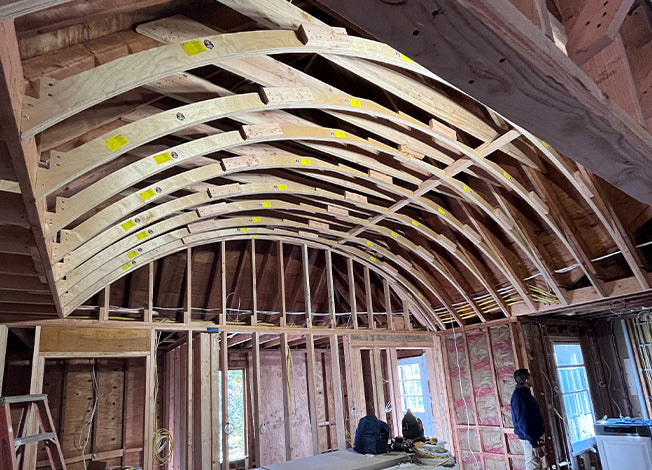

A barrel vault creates a tunnel-like atmosphere: a continuous series of arches which are melded together to create a smooth, yet impactful ceiling surface. They're a perfect solution for enhancing any entry, hallway, or theater room.

Material

Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant)

Strut Spacing (in.)  16" on center.
Depth (in.) 2 ¾” deep struts
Thickness (in.)

1” – 1 ½” (depending on width)

California residents see Prop 65 WARNINGS

HOW TO MEASURE A BARREL VAULT CEILING

  1. Measure the length of your barrel vault to the nearest 1/8”.
  2. Measure the width of your barrel ceiling to the nearest 1/8”.
  3. Choose the style of your barrel vault. Note the height required for each of the arch styles.
  4. If you choose the soft style, choose a rise for your barrel ceiling kit.
  5. Enter the location (place) where the barrel ceiling will be installed in your project (for example: Bdrm Hallway, Front Gallery, M. Bath Tub).

HOW TO INSTALL A BARREL CEILING

Every barrel ceiling kit comes with tailored installation instructions to your specifications. It's as simple as measuring, marking, and snapping the total height along each wall, nailing in each barrel vault strut, and adding a strong back along with a cripple down each side. If you can color by number and operate a nail gun, then you can install one of our barrel ceilings.

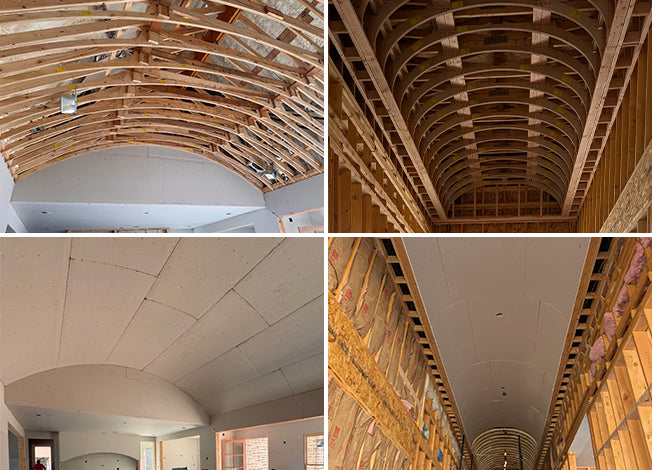

HOW TO DRYWALL A BARREL VAULT

Drywalling a barrel ceiling is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place.

QUICK TIPS

  • Wetting the back of the drywall (as shown in the video) will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.

FAQ

How long does it take to get my barrel vault?

Depending upon the size and style of your barrel vault, it could take us as little as 3 business days to manufacture or as long as 10 business days. Then add a few days for shipping.

  • Soft & Half-Circle Style: 3 to 5 Business Days
  • All other styles: 5 to 10 Business Days

How do you ship my barrel vault?

Depending upon the size of your barrel vault and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

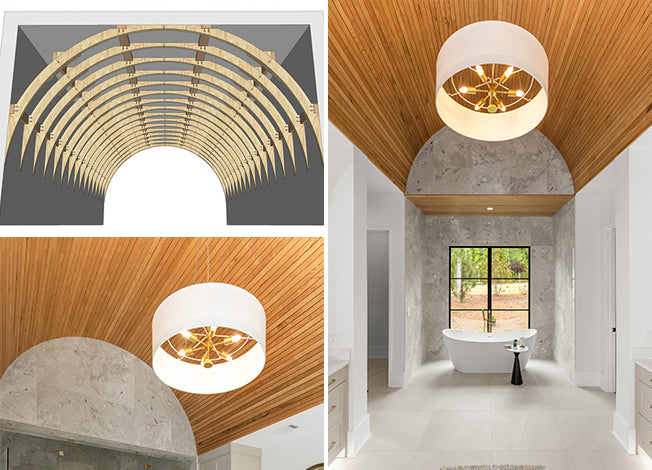

How do you finish barrel vaults?

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your barrel vault to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
