Igloo Ceilings

Igloo Ceilings

$0.00
Made In The USA icon

Need help with your order?

Call 877.303.ACME (2263)

IGLOO CEILING SPECIFICATIONS

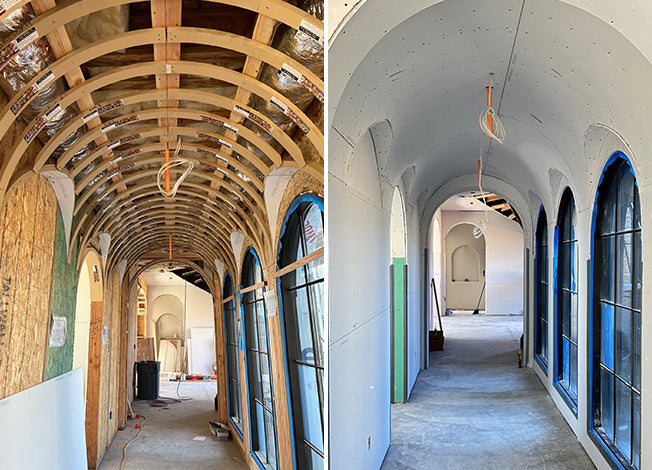

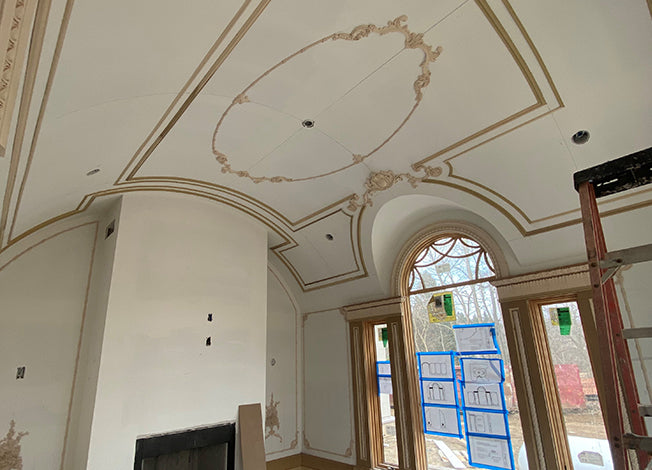

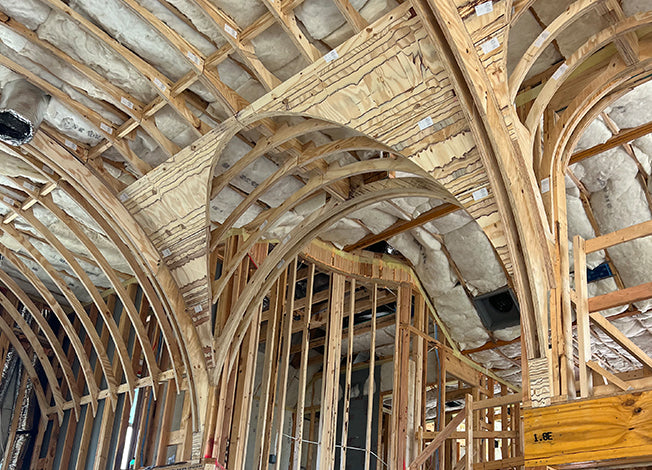

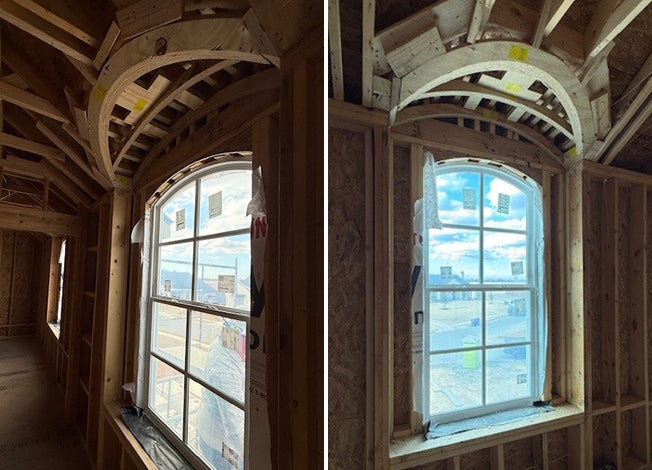

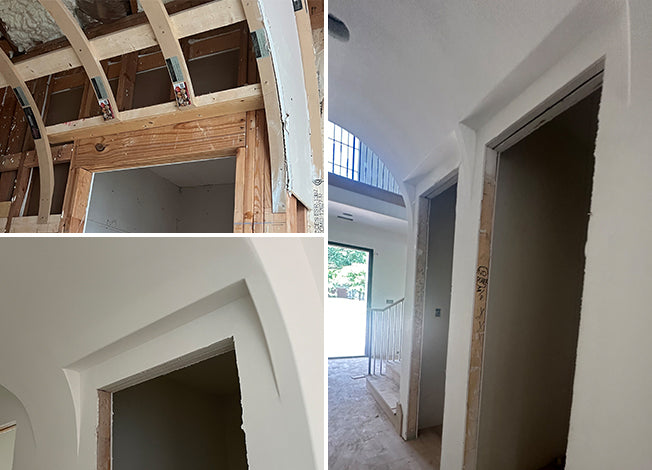

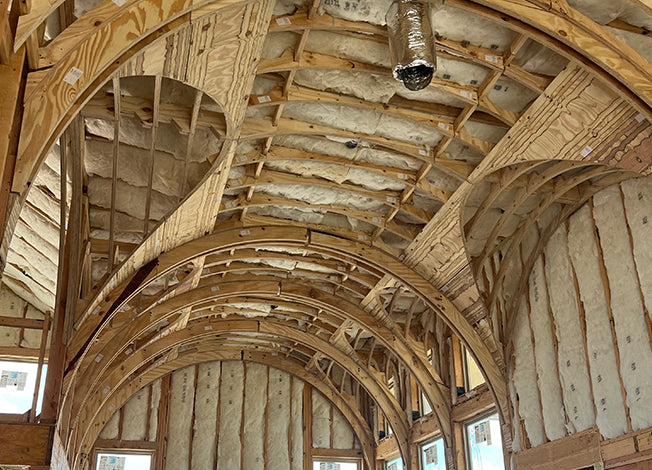

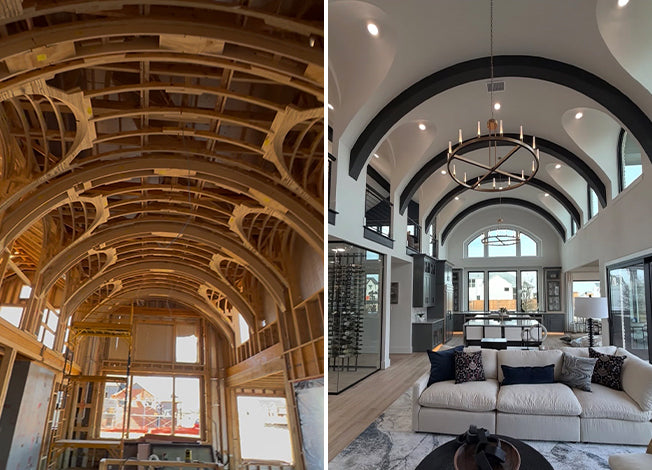

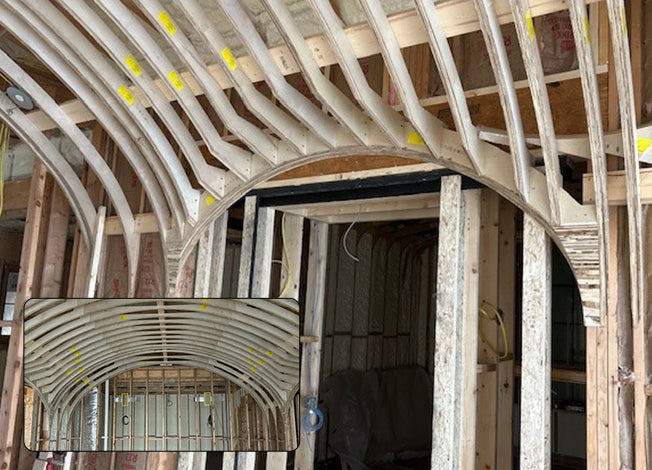

Igloo ceilings, or lunette vaults, are two or more intersecting barrel ceilings or archways at different heights. Where a groin vault is an intersection of barrel ceilings at the same height, a lunette vault intersects at different heights. This ceiling is most commonly utilized when you want a barrel vault, but you have an obstruction such as a window or doorway that would normally disqualify this ceiling as an option. With the help of an lunette vault, you can add an intersecting archway or barrel over a door or window, giving you the height you need.

Material

Medium Density Fiberboard (MDF)
(High Grade Moisture Resistant)
Strut Spacing (in.) 16” O.C. with the intersecting struts closer together
Depth (in.) 2 ¾” deep struts with deeper lower intersecting igloo parts
Thickness (in.)

1” – 1 ½” (depending on width)
California residents see Prop 65 WARNINGS
Lead Times
Lead Times

Most igloo ceilings ship within 10 to 14 business days (in most cases sooner).

Order Updates
Order Updates

The next business day following your order, we’ll email you a projected ship date.

When It Ships
When It Ships

Once your order ships, we’ll email (or text) you tracking information.

Easy to Install
Easy to Install

Your igloo ceiling will come with simple instructions making installation a breeze.

HOW TO MEASURE AN IGLOO CEILING

For each intersecting barrel or archway that comprises the whole of your igloo ceiling, you’ll need to add each of them separately to your cart. First, measure the barrel ceiling with the highest peak. Once you’ve completed this, you’ll then need to add each lower intersecting barrel ceiling or archway separately.

  1. Measure the length of your highest peak barrel ceiling to the nearest 1/8”.
  2. Measure the width of your highest beak barrel ceiling to the nearest 1/8”.
  3. Choose the style of your igloo ceiling. Note the Total Height required for each style.
  4. Choose “Highest Peak” as the correct igloo part.
  5. Enter the location (place) where the igloo ceiling will be installed in your project (for example: Bdrm Hallway, Front Gallery, M. Bath, #1 Igloo).
  6. If you choose the soft style, choose a rise for your igloo ceiling kit.
  7. Once you’ve completed the barrel ceiling with the highest peak, repeat these steps for each barrel or archway that intersects the barrel ceiling at a lower height.

CHOOSING AN IGLOO STYLE

Choosing a style for your igloo ceiling is mostly personal taste along with the overall design/theme of the home. If you want consistency, then take a look at your arch-top windows. Are they soft, half-circle, elliptical, gothic, or bell-curve? Ultimately, it is your project, so feel free to mix and match styles as you see fit. Just keep in mind that each style has a different total height requirement, which could quickly rule out several styles.

HOW TO INSTALL AN IGLOO CEILING

Begin by installing each lower intersecting igloo. From here, install the barrel vault on both sides of the lower igloo. Lastly, tie the co-joining barrels together by modifying a few of the barrel struts. Custom installation instructions will be supplied to your specifications for easy install. If you can color by number and operate a nail gun, then you can install one of our igloo ceilings.

FAQ

How long does it take to get my igloo ceiling?

Igloo ceilings normally take 10 - 14 business days to manufacture (in most cases sooner). Then add a few days for shipping. Plan for 2 1/2 to a little over 3 weeks from date of order.

How do you ship my igloo ceiling?

Depending upon the size of your igloo ceiling and/or the size of your total order, it will either ship in boxes via UPS Ground or in a crate via UPS Freight. Once your order has finished processing (usually 1 business day after order), you'll be notified when and how it will ship. If you’d like to know before you order, call us and we’ll let you know.

How do you drywall an igloo ceiling?

Drywalling a igloo ceiling is comprised of measuring the curvature, cutting the drywall to the curvature, forming and fastening in place. While we currently don't have a igloo ceiling drywall video, you can visit our YouTube page and watch some of our other drywall videos. While the application is different, the concepts are the same.

QUICK TIPS

  • Wetting the back of the drywall will make the drywall easier to bend.
  • For a tighter radius, consider using a double layer of either ¼” or ¼” flex drywall.

How do you finish igloo ceilings?

Drywall, plaster, wood veneer, brick veneer, trim, tile… the list is seemingly endless. Whether you want your igloo ceiling to have a simple or an ornate finish, the choice is yours. You can also watch our "7 Creative Ideas to Finish Your Ceilings & Archways" YouTube video.
